Ace Hanei Sector-12

Project Specifications

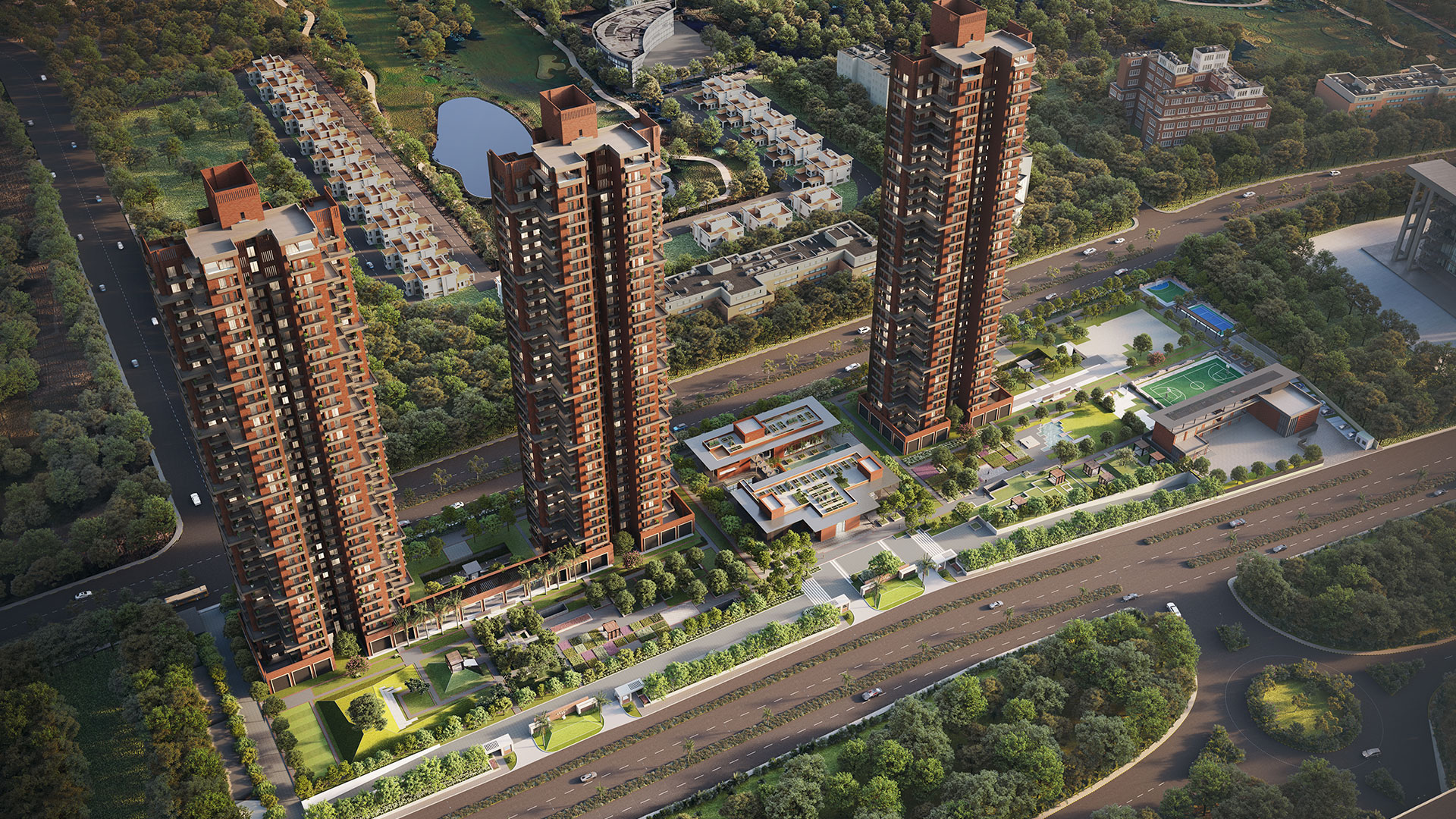

General Information

• Towers: 3
• Floors: 36
• Units: 250
• Total Project Area: 10 acres (40.5K sq.m.)
• Open Area: 80%

Boundary Wall

• 1.5m high Boundary Wall along the main road
• 2.0m high boundary wall on the other 3 sides
• Elegant Design Integrated with MS railing

Road Work

• A peripheral loop of road connecting to each tower shall be provided as per the approved design.

Footpaths

• Networks of Footpaths connect with various parts in the Landscape, Towers, and Gardens as per Sanctioned Plans.

Water Supply

• Noida Authority shall provide Water Supply to the entire society.
• Further water will be treated and supplied at Customer Premise through piping and pumping/gravity system.

Sewer System

• Centralized STP to treat Sewage and every tower has its own down-comers connected to main sewage line.

Drain

• Drainage through a network of Pipe and Catch Basin to the nearest Storm Water Drain and shall be connected to Noida Authority drain.

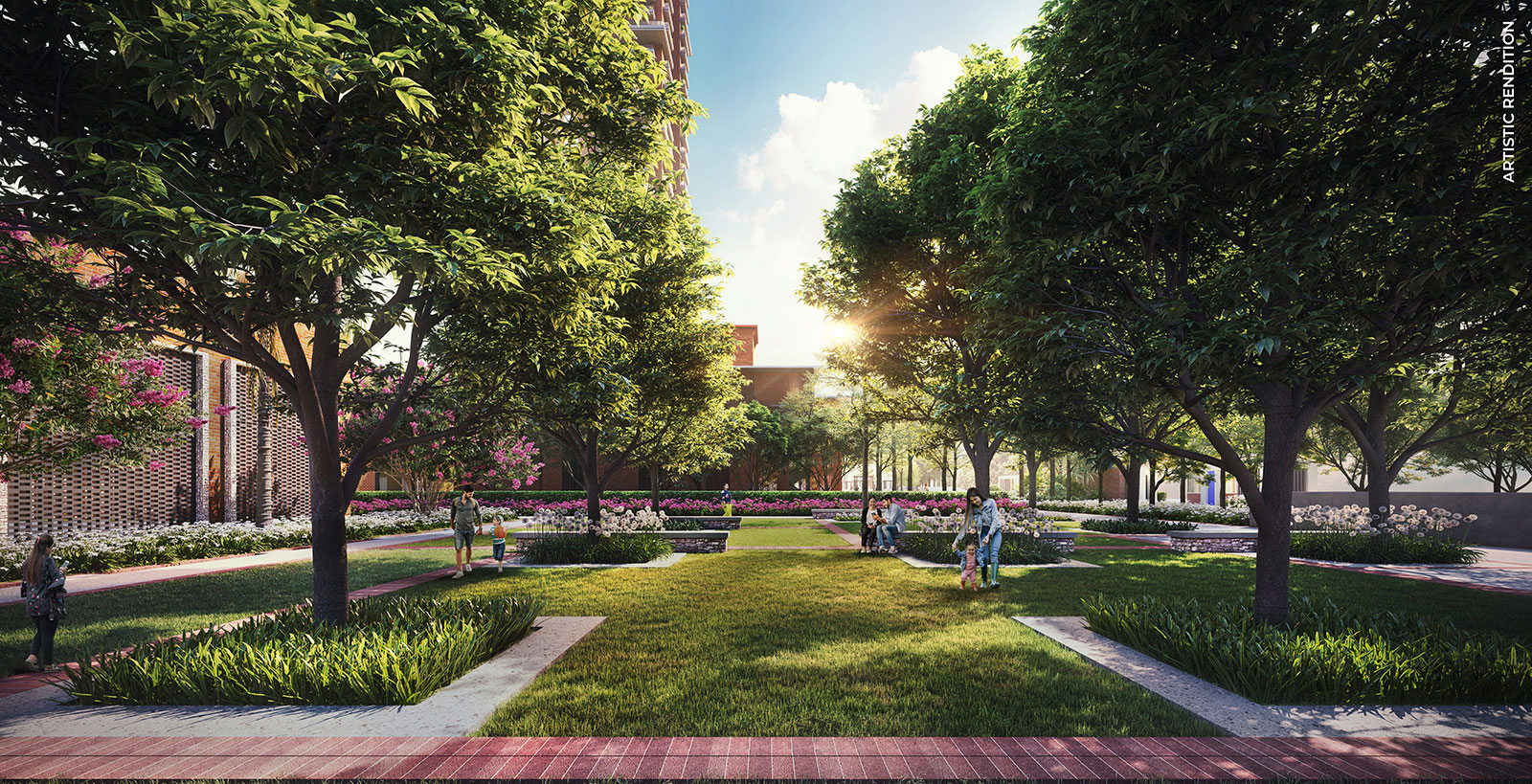

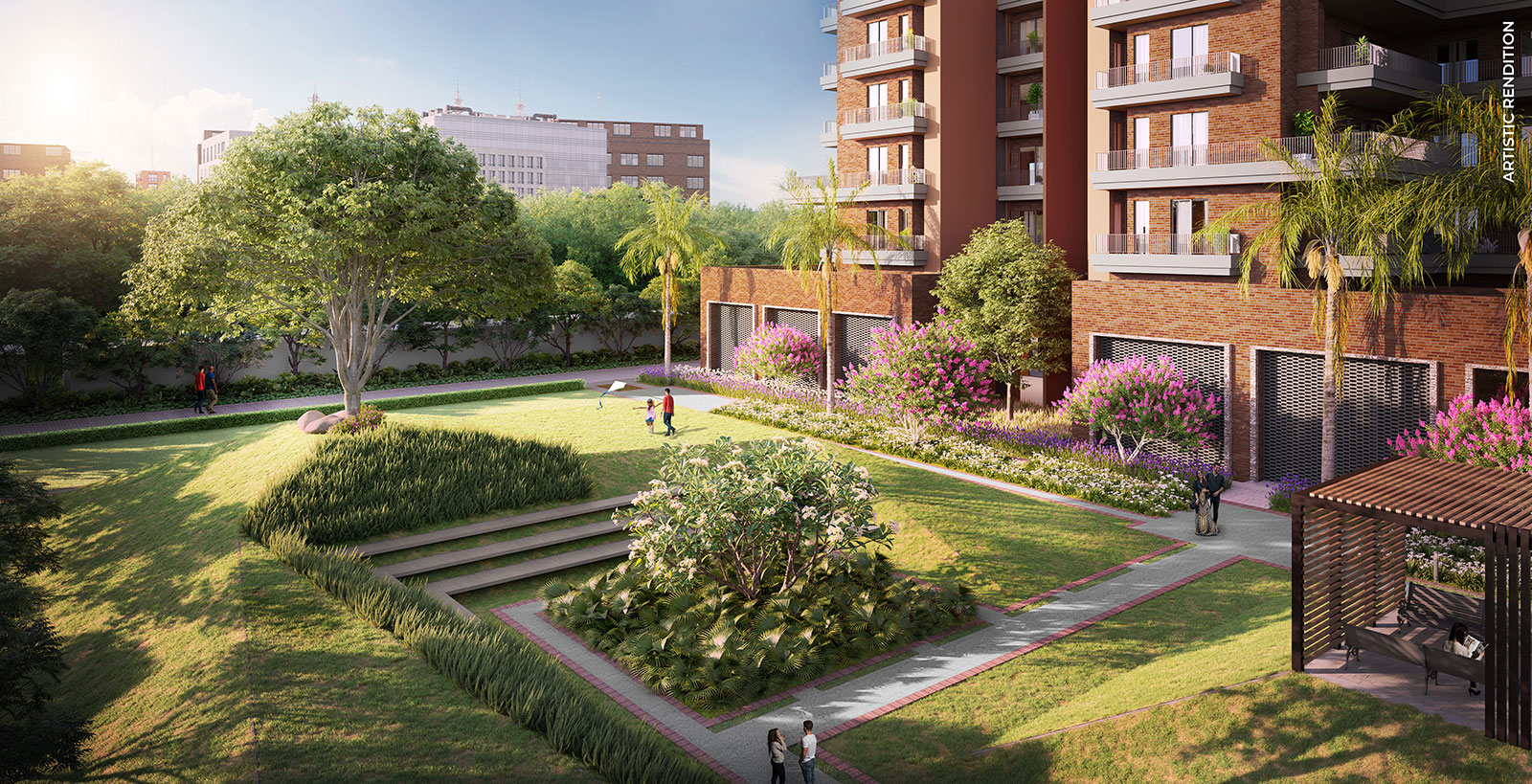

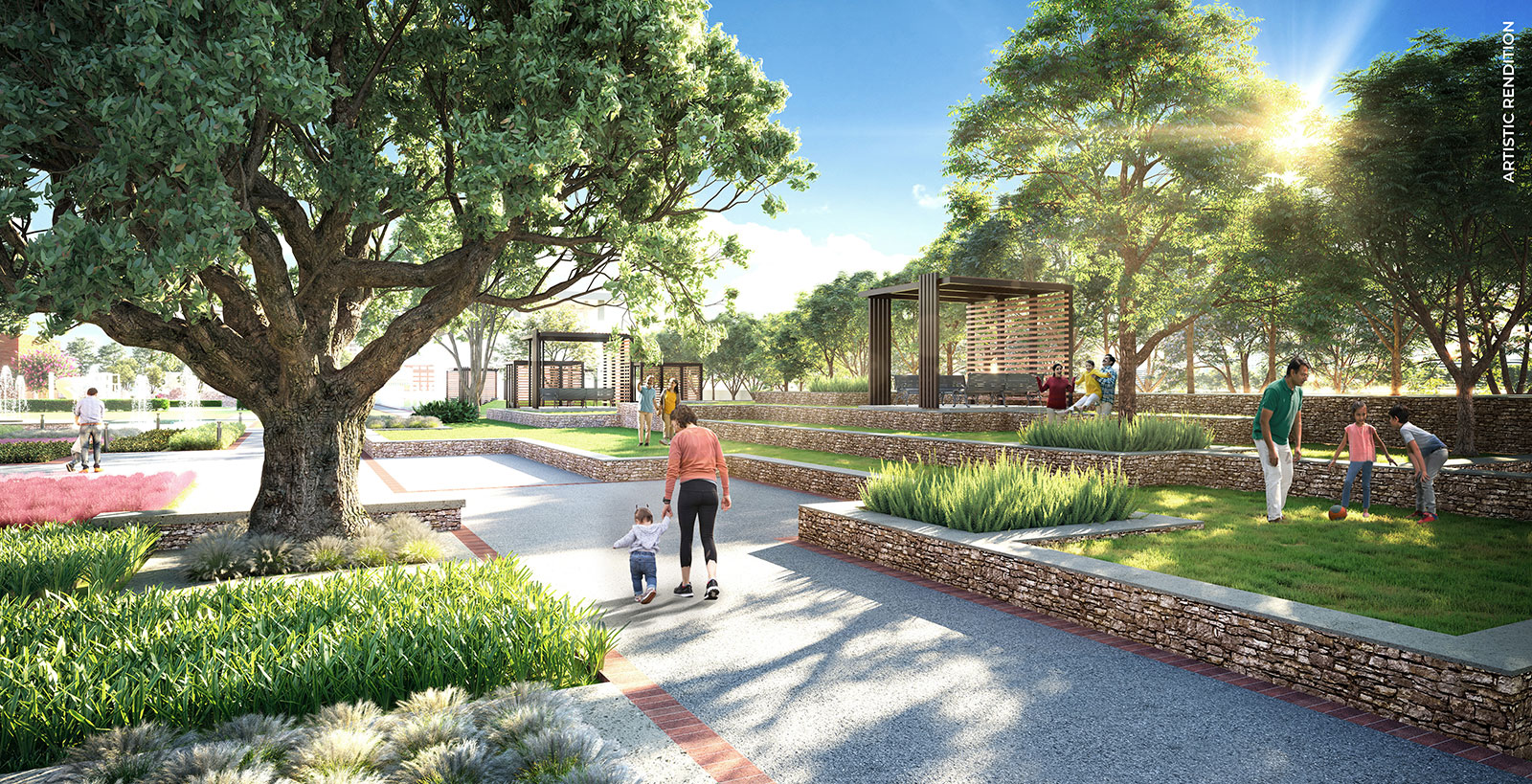

Parks

• Landscape Area is provided for parks and other recreational activities.

Tree Planting

• Trees and Plants of different species will be planted as per the landscape design intent and as per the Sanctioned Layout.
• The site shall be landscaped with masonry, stonework, horticulture, and various types of plants, shrubs, and trees, of which 50 percent will be evergreen.

Design For Electric Supply Including Street Lighting

• Single feeder shall be taken from PVVNL and connected to Central Sub-Station.
• The entire Project would have Street Lighting.

Community Buildings

• Community Building as per the approved Building Plan with multi-purpose halls.

Treatment and Disposal System of Sewage and Sullage Water

• Central STP for the entire Project and all towers shall be connected to STP.

Solid Waste Management And Disposal System

• The project shall have a waste segregation area and OWC for the treatment of organic waste.

Water Conservation System

• Dual flush system and adequate nos. of Rainwater harvesting pits shall be provided.

Fire Protection And Fire Safety System

• In compliance with the National Building Code of India 2016, part IV requirements, the system includes:
• Underground Fire Tanks of 390X2 = 780m³
• Each Tower having a 10m³ fire overhead water tank.
• Main electric fire Hydrant and sprinkler Pumps provided of 2850 LPM each.
• Jockey pump for Hydrant and Sprinkler Pumps of 180 LPM each.
• Diesel Engine Fire Pump of 2850 LPM.
• Water certain pump of 2850 LPM.
• Sprinkler system provided in compliance with IS codes and project fire safety requirements aligned to NBC 2016 Part IV.

Emergency Evacuation Services

• YES, Refuge area provided at 17th, 18th, 25th, 26th, 33rd, and 34th floor of every tower as per NBC 2016.
• Main and Fire Staircase provided, including a Basement for fire/emergency exit as per NBC.

Other Miscellaneous Work

• Proper Security systems including Security Guard, CCTV Cameras, and controlled access shall be provided.
